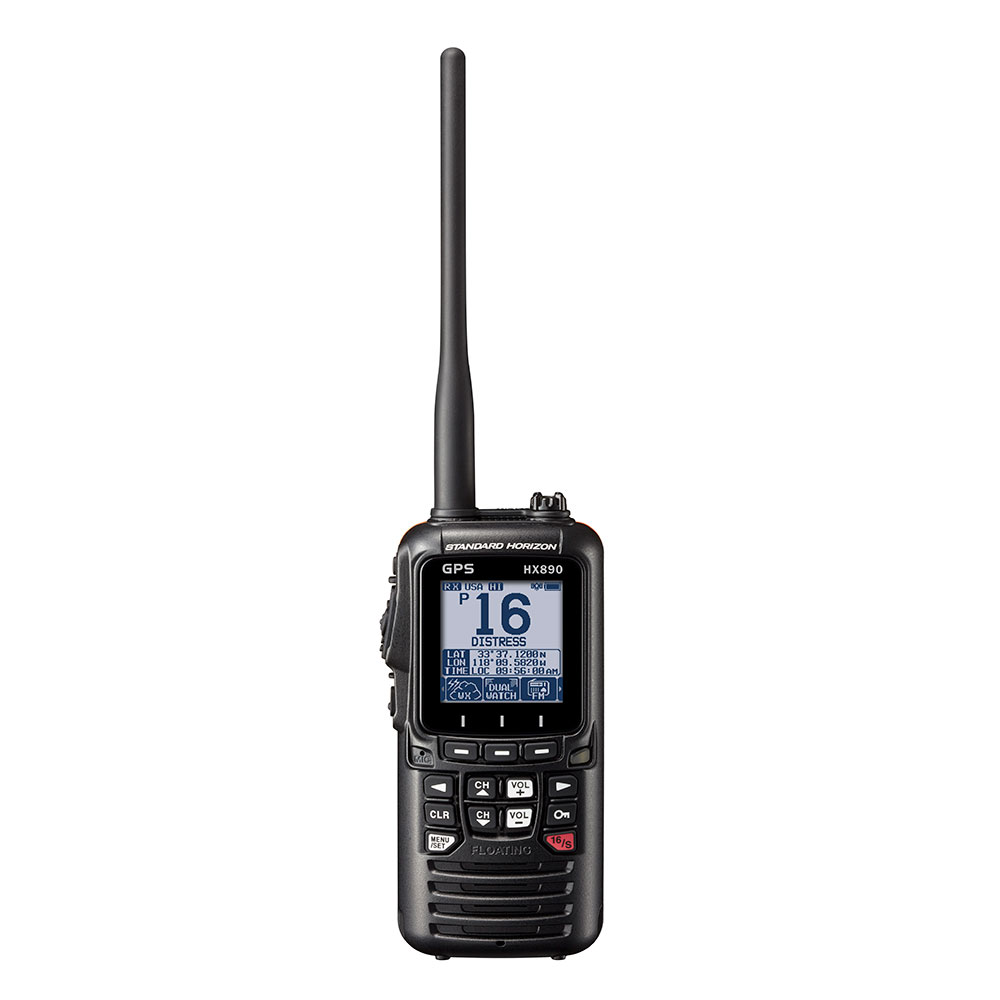

Standard Horizon HX890E
- DSC (Digital Selective Calling) ITU-R M.493 Class-H operation
- Built-in integrated 66 channel GPS receiver
- 6W transmit power output (selectable 6/2/1 W)
- Floating and Submersible to IPX8 with a Water-activated emergency white strobe light
- 700mW loud audio and Noise cancelling function for both transmit and receive audio
- 11-hour operating time with 1800mAh high capacity Li-ion battery (Based on a 5-5-90 duty cycle)
- SBT-13 Alkaline Battery Case for 5 x AAA included
- Easy to Operate menu system with a large (43 x 43 mm) full-dot matrix display
- Selectable display mode – day & night
- Waypoint and route navigation
- Group monitor function utilizing DSC group position call
- MOB (Man Over Board) feature
- Versatile scanning operation (dual watch and triple watch)
- FM broadcast radio receiver
- Rugged case construction conforms to Military Standard (MIL-STD-810F)
- Two scrambler systems built-in – 4-code CVS2500A & 32-code FVP-42
- Micro USB data jack for PC programming
- All USA, International and Canadian channels
- ATIS Mode for European Inland Waterways
- 3 Year Warranty
DSC (Digital Selective Calling) ITU-R M.493 Class-H operation
The Standard Horizon HX890E has full DSC capabilities which enables your precise location and identification information to be transmitted on pressing the Distress Alert button on the rear of the radio. (requires GPS switched on and Portable MMSI number entered).

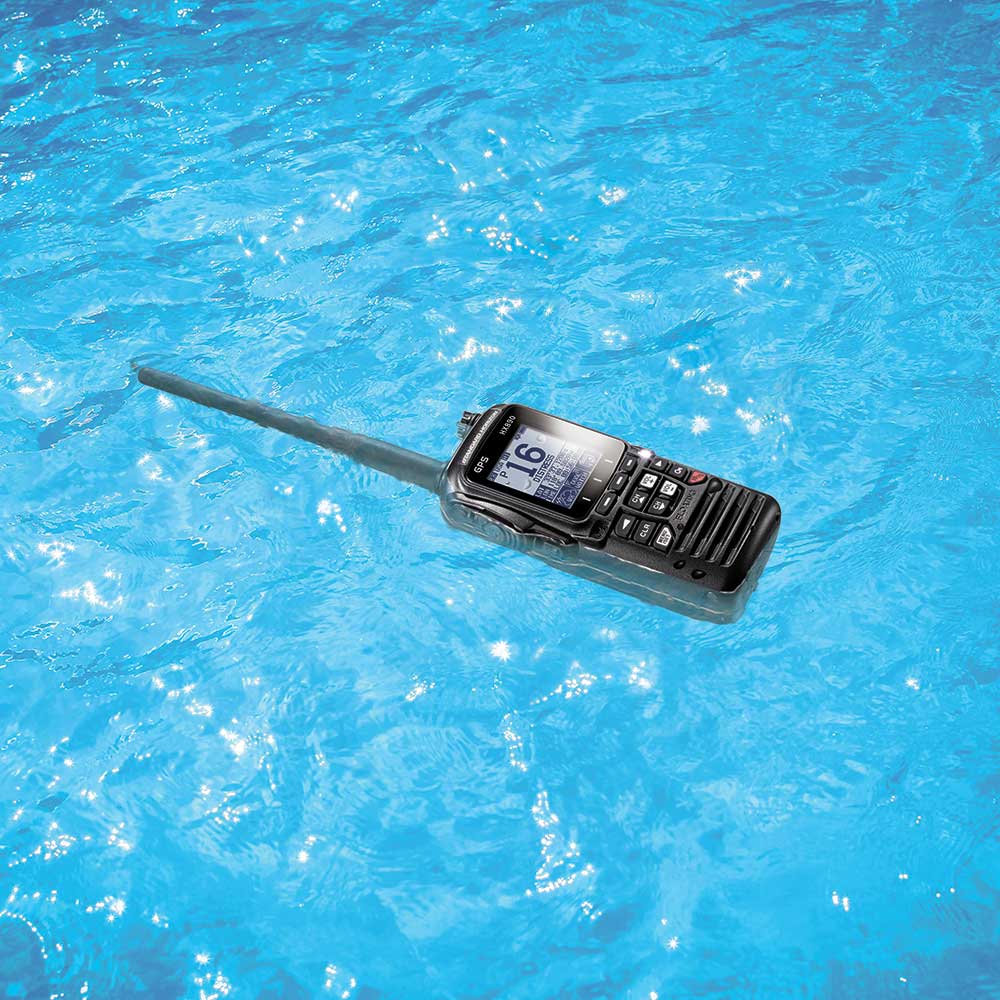

Floating with a Water Activated Emergency Strobe Light
The Standard Horizon HX890E will float face up and is waterproof to the IPX-8 standard which is 1.5m for 30 minutes.
When the radio falls in the water an emergency strobe light is automatically activated, even when the unit is turned off. The strobe can be reconfigured to flash on and off, flash SOS, or set to stay on continuously.
Integrated 66 Channel WAAS GPS receiver
A highly sensitive 66 channel GPS receiver allows the Standard Horizon HX890E to lock on to a position quickly and accurately. With position information displayed clearly on the display the user will be able to share position information using DSC and navigate to waypoints using the waypoint navigation feature of the radio.
Waypoint and Route Navigation
The Standard Horizon HX890E is capable of storing up to 250 waypoints and 20 Routes (with a maximum of 30 waypoints per route). The Navigation screen clearly displays the distance and direction to the destination, and the waypoint is indicated by a dot on the compass rose graphic.
Easy to Operate Icon/Menu System
Forget about trying to memorize the owner’s manual. A brand new Easy to Operate Menu system with icons. DSC calling, position sharing, waypoint and route navigation, navigation to DSC distress call can all be performed with just a few simple steps.
GM (Group Monitor) using DSC Group Position Call
This advanced feature allows you to continuously track and display position information of up to 9 pre-selected vessels. Their position information is displayed on the compass page relative to your location on the display.
Built in FM Broadcast band receive
The Standard Horizon HX890E has an expanded receiver allowing the user to tune in to their favourite FM radio station. The radio will receive FM broadcast bands between 76 MHz to 108 MHz.
Oversized full dot matrix display
The Standard Horizon HX890E boasts one of the largest displays in a hand held VHF radio. Measuring 43mm wide by 43mm tall, or 58mm diagonal. With a large display, high (dot matrix) resolution, and a super bright backlight there will be no mistaking the information displayed on the face of the radio day or night.
Standard Horizon HX890E Package Includes
- CAT460 Antenna
- SBR-13LI 7.4V 1800 mAh Li-ion Battery Pack
- SAD-25 AC adaptor with Multi Region plug for SBH-32
- SBH-32 Charger Cradle
- E-DC-19A DC Cable with 12 V Cigarette Lighter Plug for SBH-32
- SBT-13 Alkaline Battery Case for 5 x AAA Batteries
- CLIP-22 Belt Clip
- YS-05-01 Hand Strap
- T9101648 USB Cable
- Owner’s Manual
- Warranty Card
